MPI Manual Probe Systems

Standard Open Systems

MPI TS150, TS200 & TS300 manual probe systems are open, easy to use and cost effective yet highly accurate. These systems are designed for precision analysis of substrates and wafers up to 150, 200 and 300mm.



They may be configured to support a wide variety of applications such as Failure AnalysisDesign Validation/IC Engineering, Wafer Level Reliability, MEMS, High Power and Device Characterization and Modeling as well.

Manual Probe Station

Dedicated Systems for mmW and THz Application

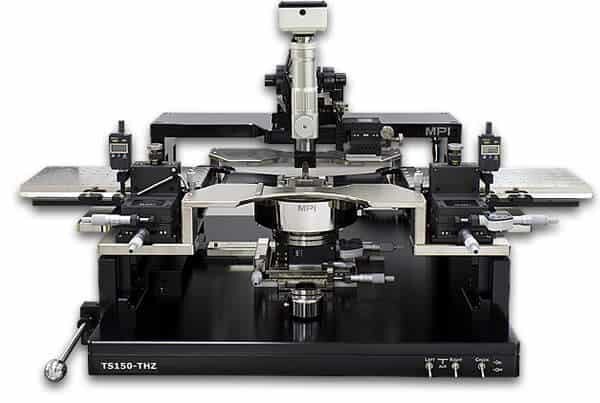

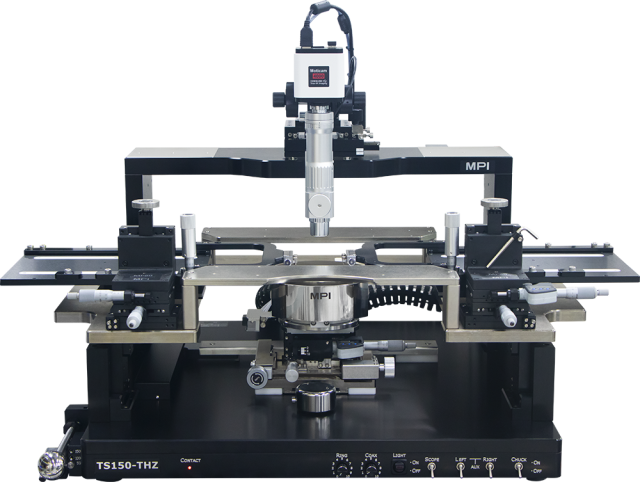

MPI TS150–THZ engineering probe system is a dedicated, cost effective, manual probe system designed especially for precision analysis of substrates and 150 mm wafers in sub THz range.  The system is extremely stable, with a large probe platen, and a low-profile design. Each of these essential elements are required to support a wide variety of RF and mmW applications such as broadband up to 110 GHz, banded solutions up to 1.1THz, load-pull and RF noise.

150mm Probe System

Shielded Systems

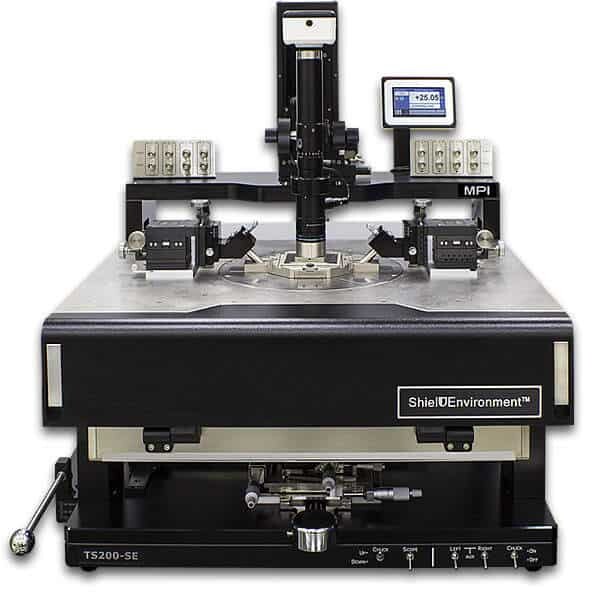

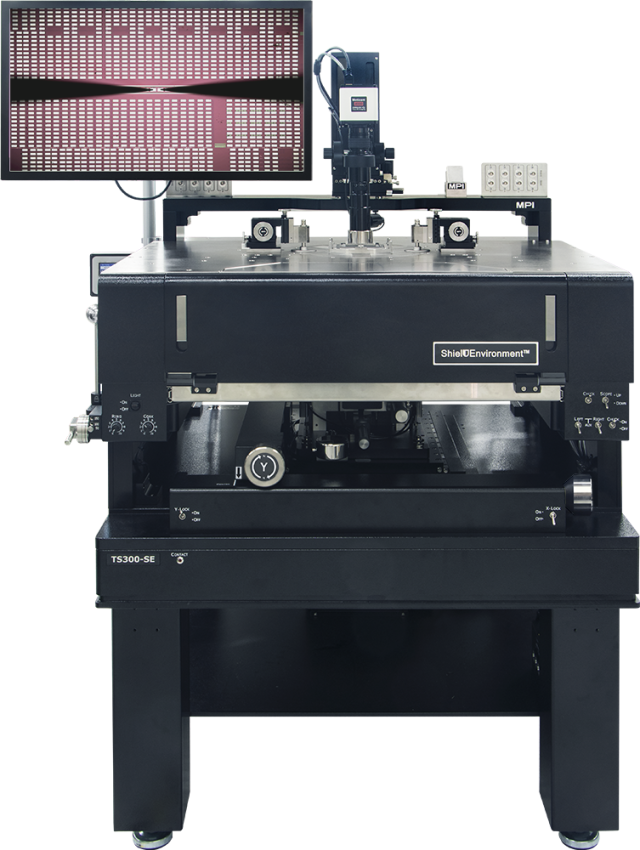

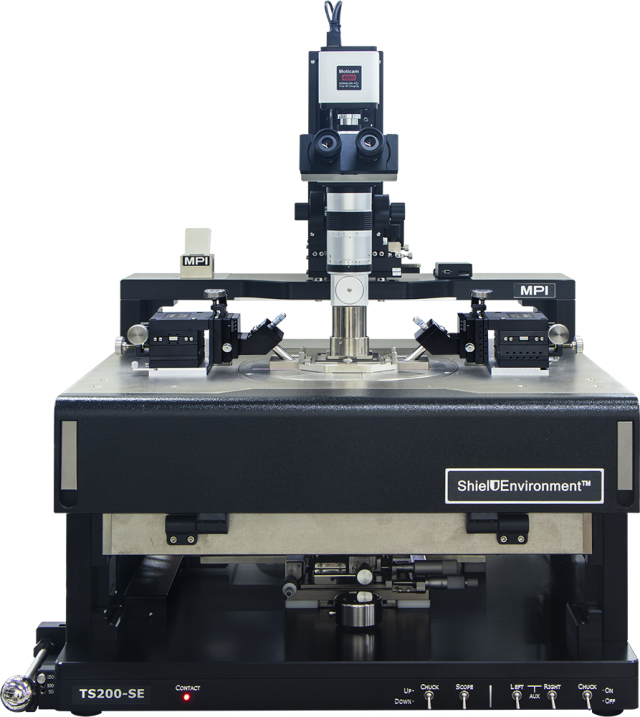

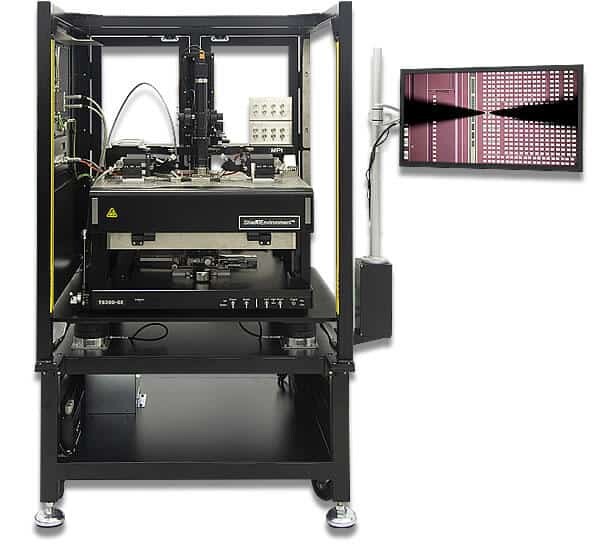

The MPI TS200-SE and TS300-SE probe system incorporate the ShielDEnvironment™ providing optimal EMI shielding which allows ultra-low noise device on-wafer measurements mainly for Device Characterization and Modeling applications.

150mm Probe System

High Power Systems

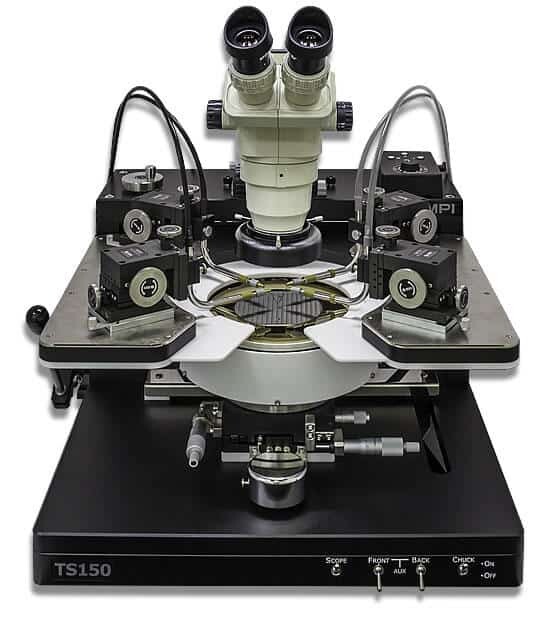

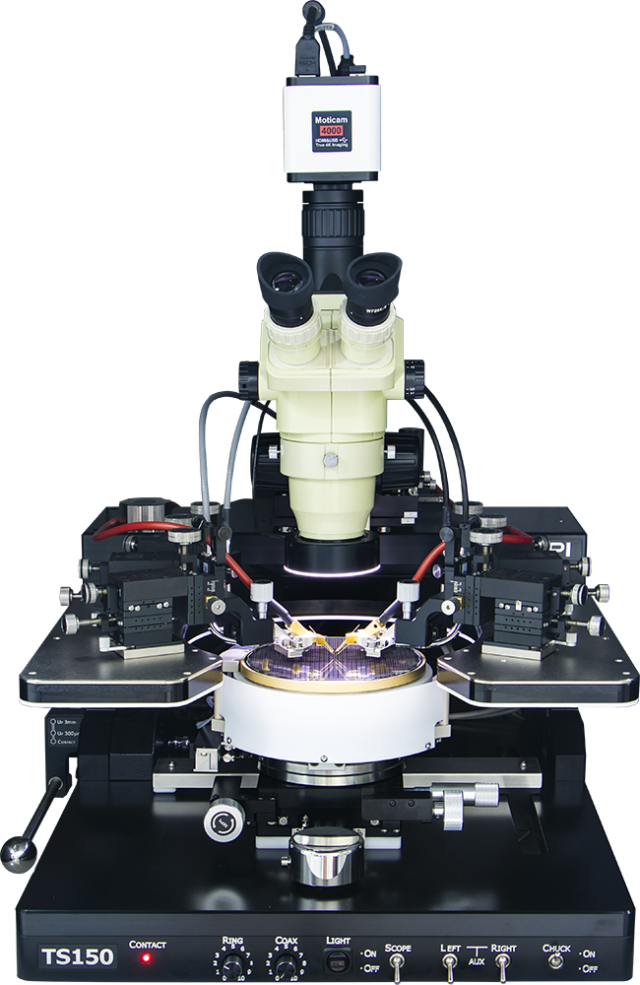

The MPI TS150-HP and TS200-HP probe systems are specifically designed for on-wafer high power device characterization testing up to 10 kV and 600 A. Dedicated chuck designs, connectors and cables are engineered to achieve low contact resistance measurements of power semiconductor under wide range of temperatures.
