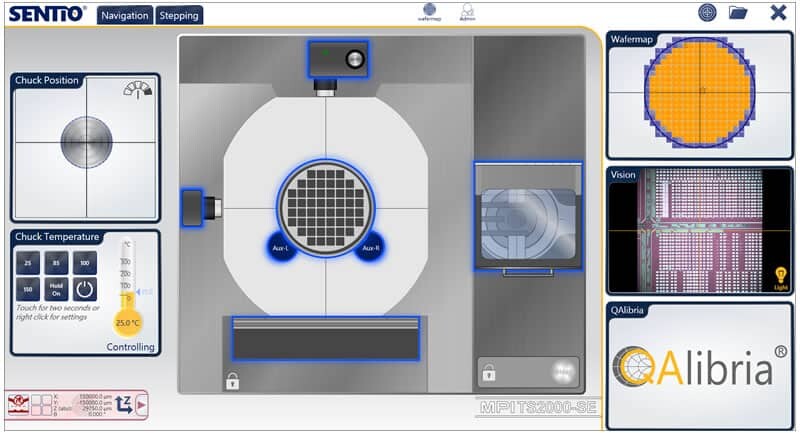

The DashBoard™

The software is always starting with the new SENTIO^® DashBoard where the probe system is mapped distinctively to guide the operator by clicking of the active and clear visible probe systems components such as wafer chuck, AUX chucks, microscope, wafer loader and others. After a simple touch, actions which make only sense for the particular workflow are allowed and displayed.

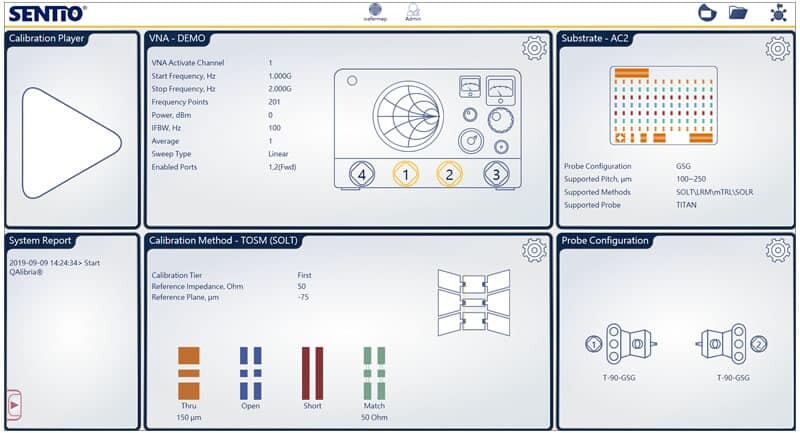

For RF applications, there is no need to switch to another software platform – the MPI RF calibration software engine QAlibria^® is fully integrated with SENTIO^® – for ease of use by following a single operational concept methodology.

Live Vision & Wafer Map

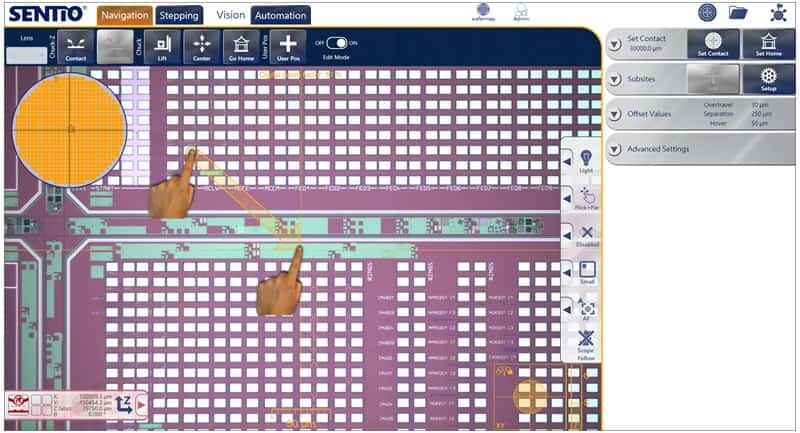

Scroll, Zoom, Move commands mimic modern smart mobile devices and allow everyone to become an expert in just minutes. Furthermore known point-and-shoot, drag-and-drop, pan functionalities making the system operation fast and really enjoyable!

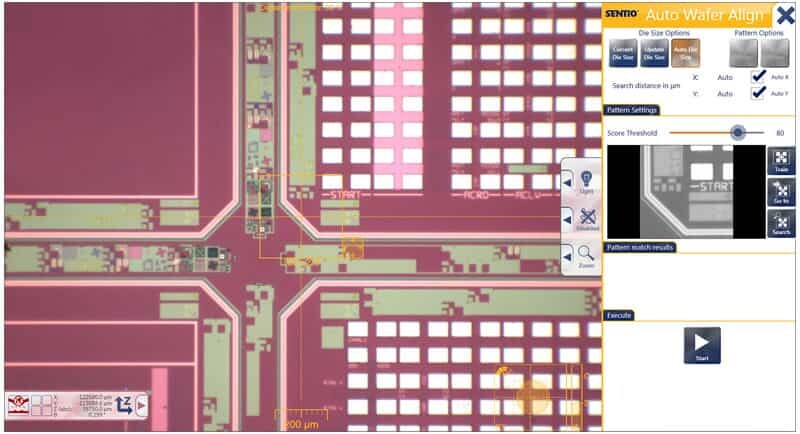

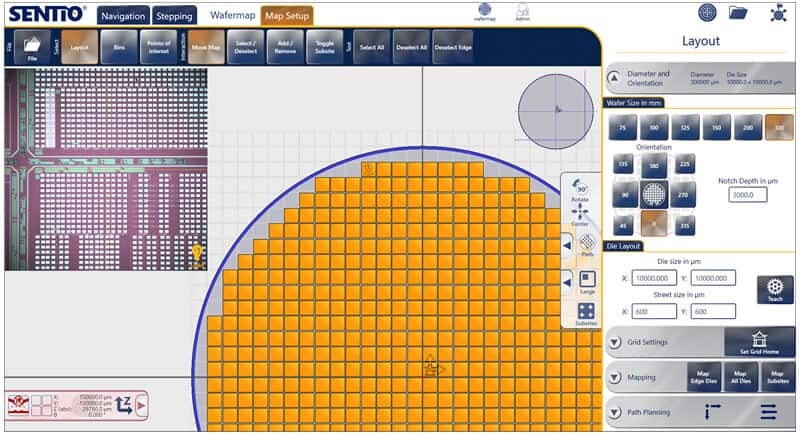

Wafer Map navigation, with snap-function for easy and accurate moving to next Dies or Sub-Dies Automated wafer alignment, Wafer Map generation are example of the standard features, which are included in the base software.

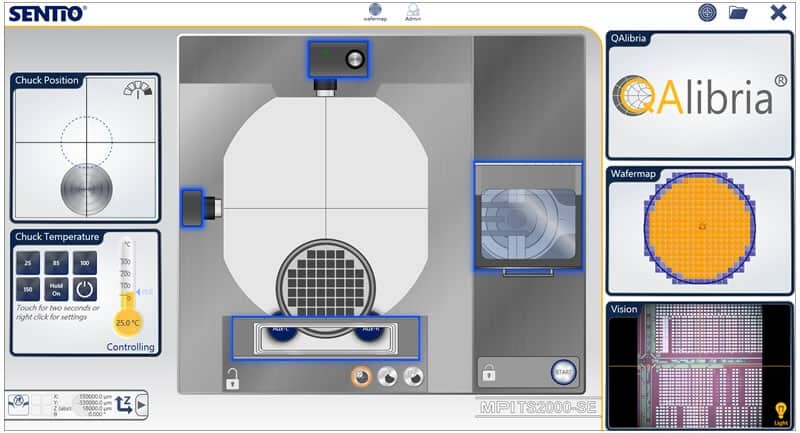

The Safety Concept

Not only easy and intuitive – MPI engineers designed the software suite to provide the most safety operation in the same time.
Protecting a new operator of making mistakes, guiding the operational flow by meaningful wizards and drop-down messaging, and further more – protecting the Device Under Test (DUT) and the ongoing measurements results are come to the fore.

Looking the doors during measurements or during a negative temperature testing, vacuum release if the front door is open only, manual changing of temperature only in safety mode, the unique “MeasureMode”, where the no light or any movements are allowed before a second confirmation, are just few examples of the MPI safety approach.
