Thermal Product Line
製品シリーズと機種構成
ThermalAirシリーズ製品紹介

ThermalAirシリーズの温度試験装置は、試験用途に正確な温度試験性能を提供します。エンジニアリング試験ラボや生産ラインに関係なく、ThermalAir 温度試験装置はさまざまな製品や技術に柔軟な試験ソリューションを提供できます。

-100°C / +300°C

Thermal Product Line
製品シリーズと機種構成
ThermalAirシリーズ製品紹介

ThermalAirシリーズの温度試験装置は、試験用途に正確な温度試験性能を提供します。エンジニアリング試験ラボや生産ラインに関係なく、ThermalAir 温度試験装置はさまざまな製品や技術に柔軟な試験ソリューションを提供できます。

-100°C / +300°C

Thermal Forcing System

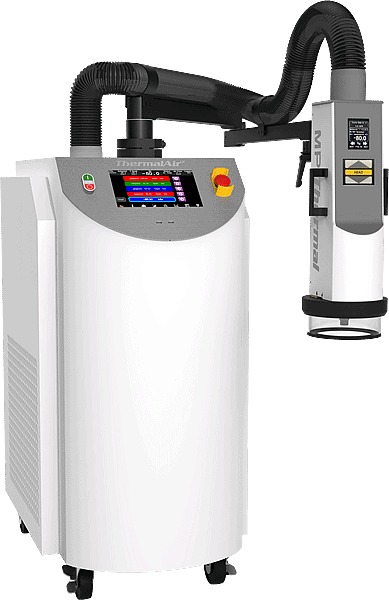

TA-5000A with Glass Cap

Thermal Air Forcing System | Temperature Forcing System | Temperature Forcing Equipment

-80°C to +225°C

The ThermalAir TA-5000A delivers a precise thermal stream of hot or cold dry air -80°C to +225°C capabilities directly to your test application, exactly localizing to where thermal conditioning and temperature cycle Hot & Cold is required.

Output Temperature Control

ThermalAir can control by user setting, the ramp rate, and temperature transition time as fast as -55°C to +125°C in less than 10 seconds.

How Does It Work

The TA-5000’s built-in air dryer and filtering system sends clean dry air stream (CDA) through its powerful internal chiller/heat exchanger to deliver hot & cold temperatures from -80°C to +225°C.

Users can control the flow rate from 4 to 25 SCFM. The ThermalAir temperature test system is all self-contained. You plug it in and it’s ready to start thermal testing your parts.
(No configuration required.)

Benchtop Environmental Chamber

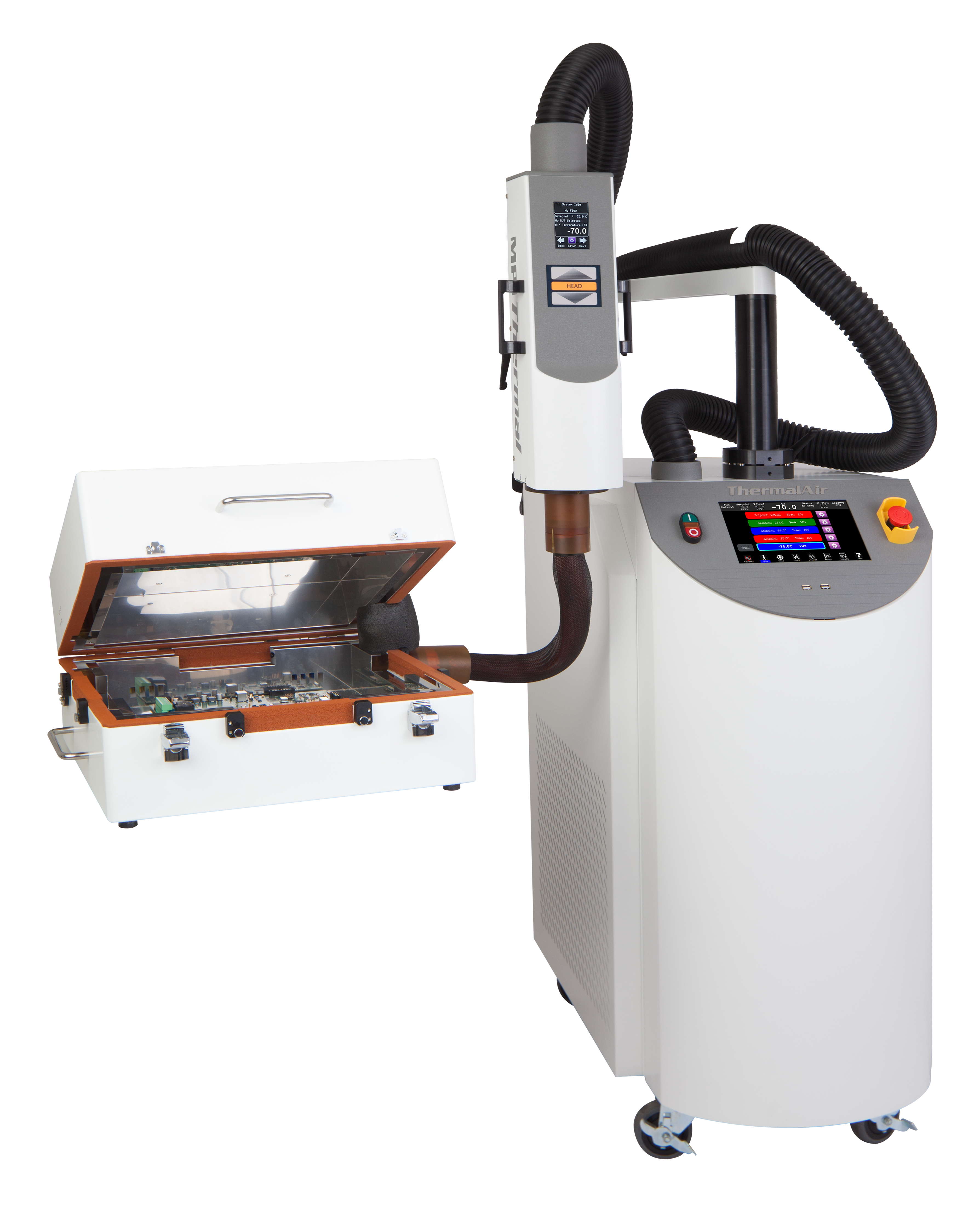

TA-5000A with Clamshell & Flex Hose

チャンバー

-80°C to +225°C

ThermalAir Clamshell Style Benchtop Environmental Test Compact Chamber is for temperature testing all types of components such as Automotive Parts, Sensors, Fiber Optic Transceivers, Microwave Devices, MCM, PCB, and all types of Electronic / Non-Electronic parts.

The Clamshell Compact Chamber can be opened and closed for quick and easy loading/unloading of parts that need temperature tests and thermal conditioning.

Users can test their electronic/non-electronic parts and other devices at temperatures from -60°C to +200°C with the Clamshell Style Chamber with precise temperature accuracy and uniformity, unmatched by large environmental temperature chambers.

Thermal Test Enclosure

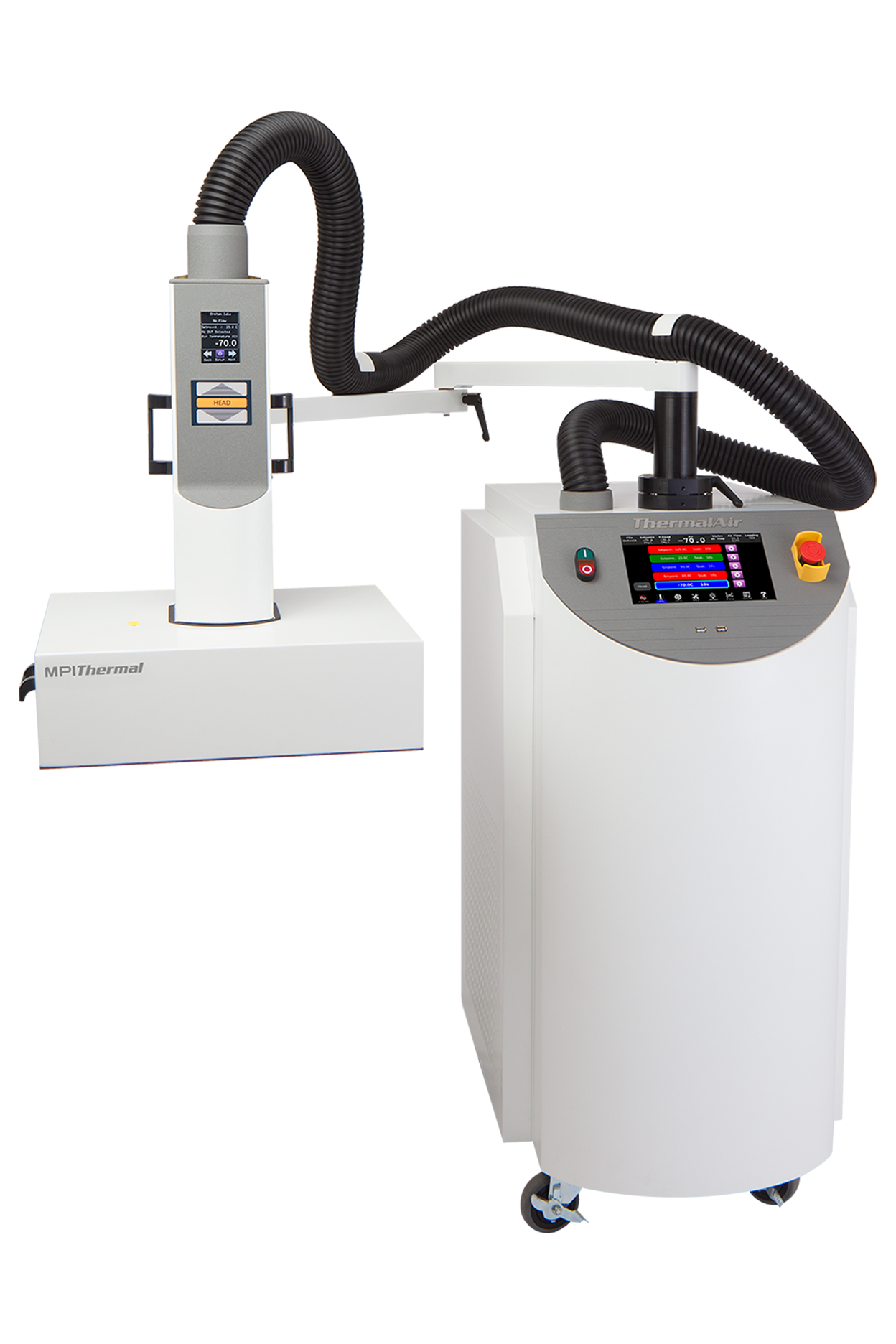

TA-5000A with Hood

TA5000A Hood

-80°C to +225°C

ThermalAir TA-5000A Hood Style Compact Chamber is for temperature testing all types of components such as Automotive Parts, Sensors, Fiber Optic Transceivers, Microwave Devices, MCM, PCB, and all type of Electronic / Non-Electronic parts, and other test articles.



The Hood Style Compact Chamber is a thermal test enclosure that can be raised and lowered down over the unit under test for quick and easy loading/unloading parts right on your test station bench test fixture that needs temperature thermal conditioning. Temperature test and cycle your electronic / non-electronic parts and other test articles and devices at temperatures from -60° to +200°C with Hood Style Chamber at temperature accuracy and uniformity, unmatched by standard environmental temperature test chambers.

Small Environmental Test Chambers

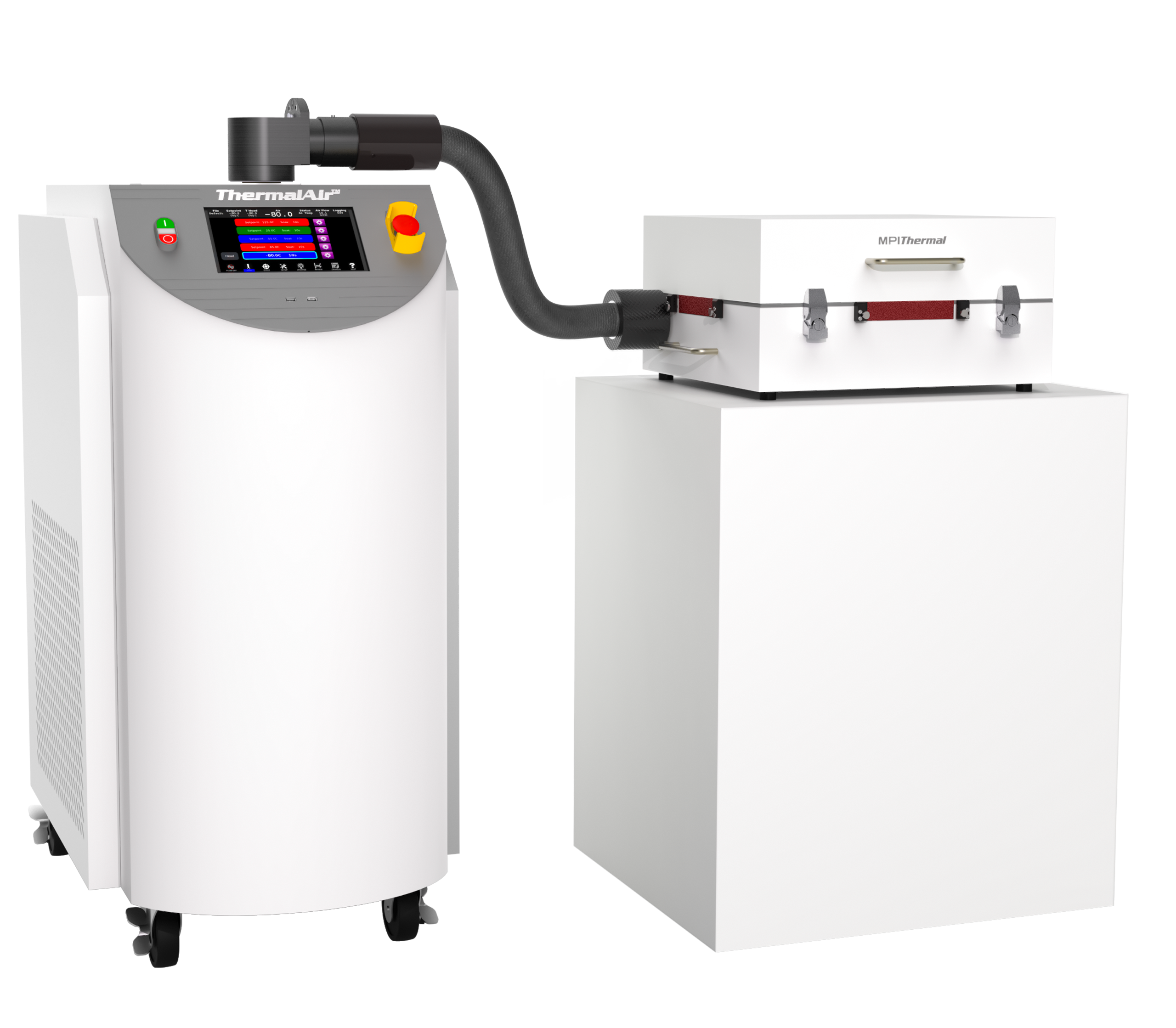

TA-5000B with Clamshell Chamber & Flex Hose

TA 5000B Clamshell

-80°C to +225°C

ThermalAir Compact Environmental Test Chamber is for Electronic Test at temperatures of all types of components such as Automotive Sensors, Fiber Optic SFP Transceivers, RF Microwave Devices, Hybrids, Semiconductors, MCM, PCB, or type Electronic Components / Non-Electronic parts.

The ThermalAir TA-5000B brings precise -80°C to +225°C thermal capabilities directly to your test application, exactly localizing where temperature testing is required.

ThermalAir TA-5000B Clamshell Test Chamber can be opened and closed for quick and easy loading/unloading of parts that need temperature testing and thermal conditioning. Users can temperature test their electronic/non-electronic parts and other devices from -60°C to +200°C with the Clamshell Style Test Chamber at temperature accuracy and uniformity unmatched by large environmental test chambers.

Thermal Cycling Test System

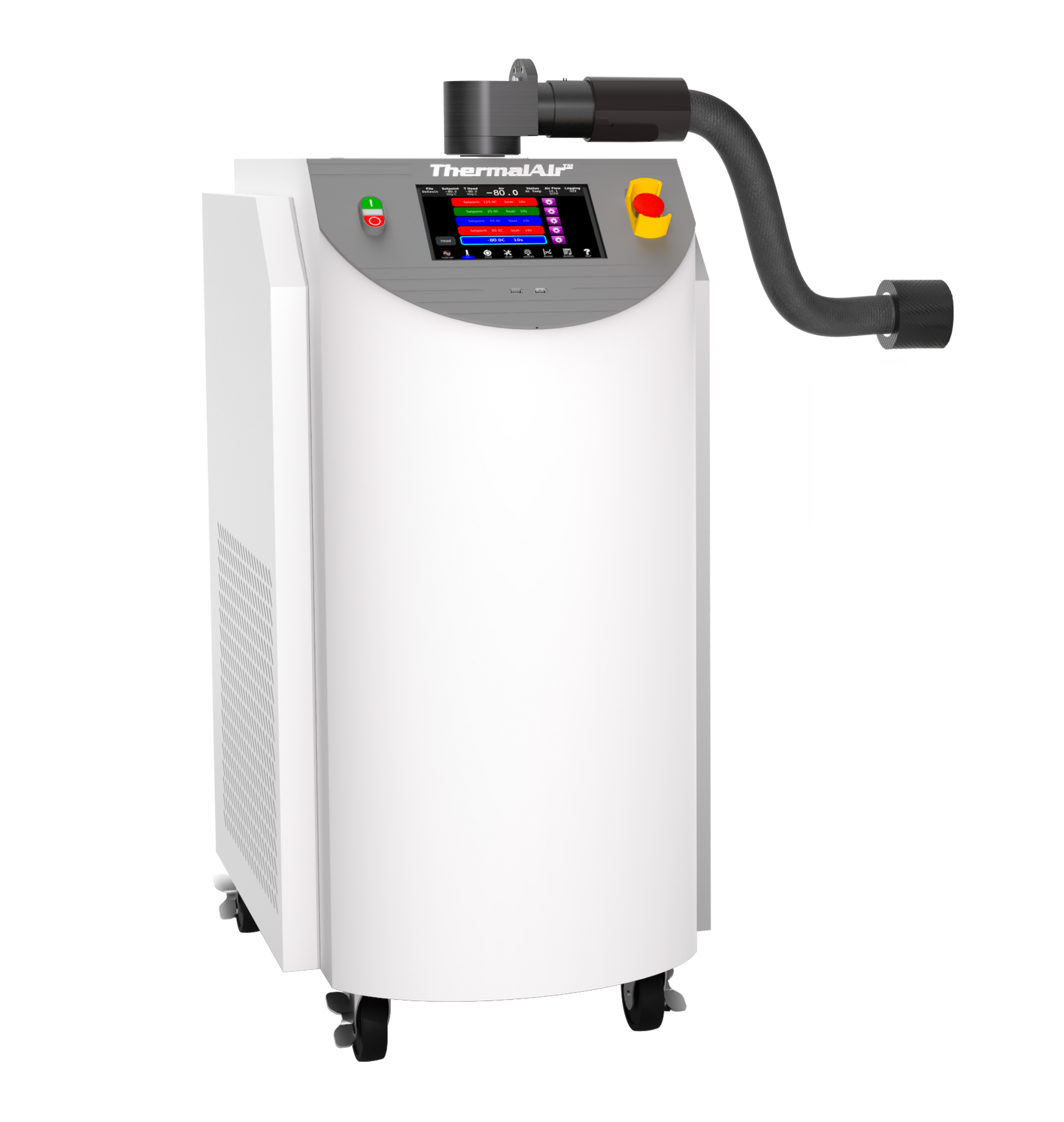

TA-5000B with Flex Hose

TA 5000B with Flex Hose

-80°C to +225°C

TA-5000B with Flex Extender Air Transfer Hose provides maximum flexibility and reach, in the lab, on the benchtop, or in the production line. The unique architecture of the ThermalAir TA-5000 creates an unprecedented performance.

Performance Plus! – Productivity!

  • Out Gas Air Flow up to 20 SCFM from -80°C to +225°C
  • -55°C to +125°C / +125°C to -55°C < 10 sec.
  • Ultra-Stable DC Temperature Control
  • Frost-Free Operation / Heated Purge / Built-in Air Dryer
  • No LN2 or CO2 / CFC Free / CE Mark

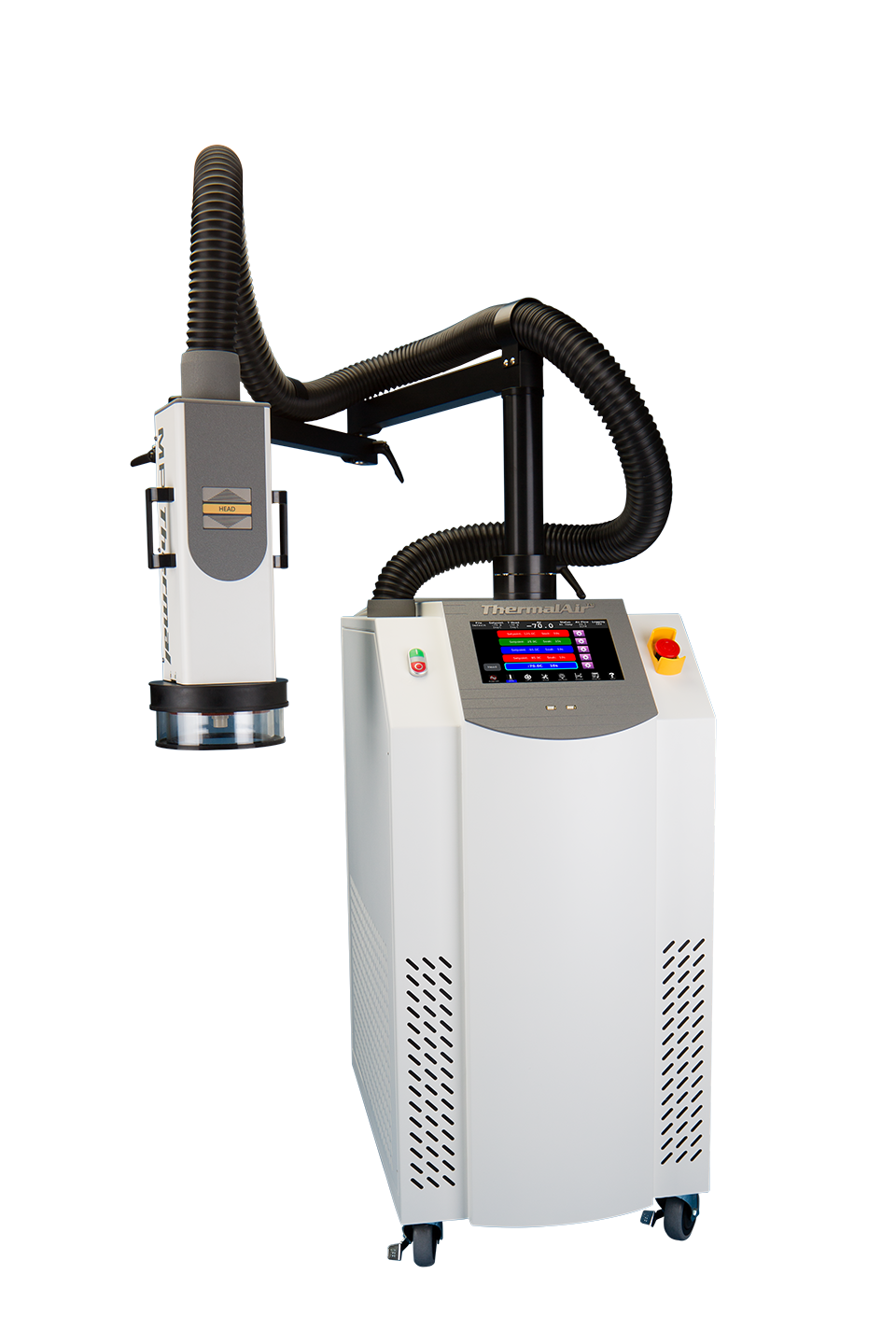

TA-3000A with Thermal Glass Cap

A smaller footprint ThermalAir System

TA 3000A 1

-65°C to +225°C

The ThermalAir TA-3000A high-capacity thermal air stream system is used for temperature testing, fast thermal cycling, and device temperature characterization of components, hybrids, modules, PCBs, and other electronic and non-electronic assemblies at precise temperatures from -65°C to +225°C.



ThermalAir TA-3000 Temperature Forcing System and Environmental Test Chambers are for temperature testing all types of components such as Automotive Sensors, Fiber Optic Components, Microwave Hybrids, MCM, PCB, or type Electronic Components / Non-Electronic parts, and other Test Articles.

The ThermalAir TA-3000A brings precise thermal capabilities directly to your test application, exactly localizing to where temperature testing is required.

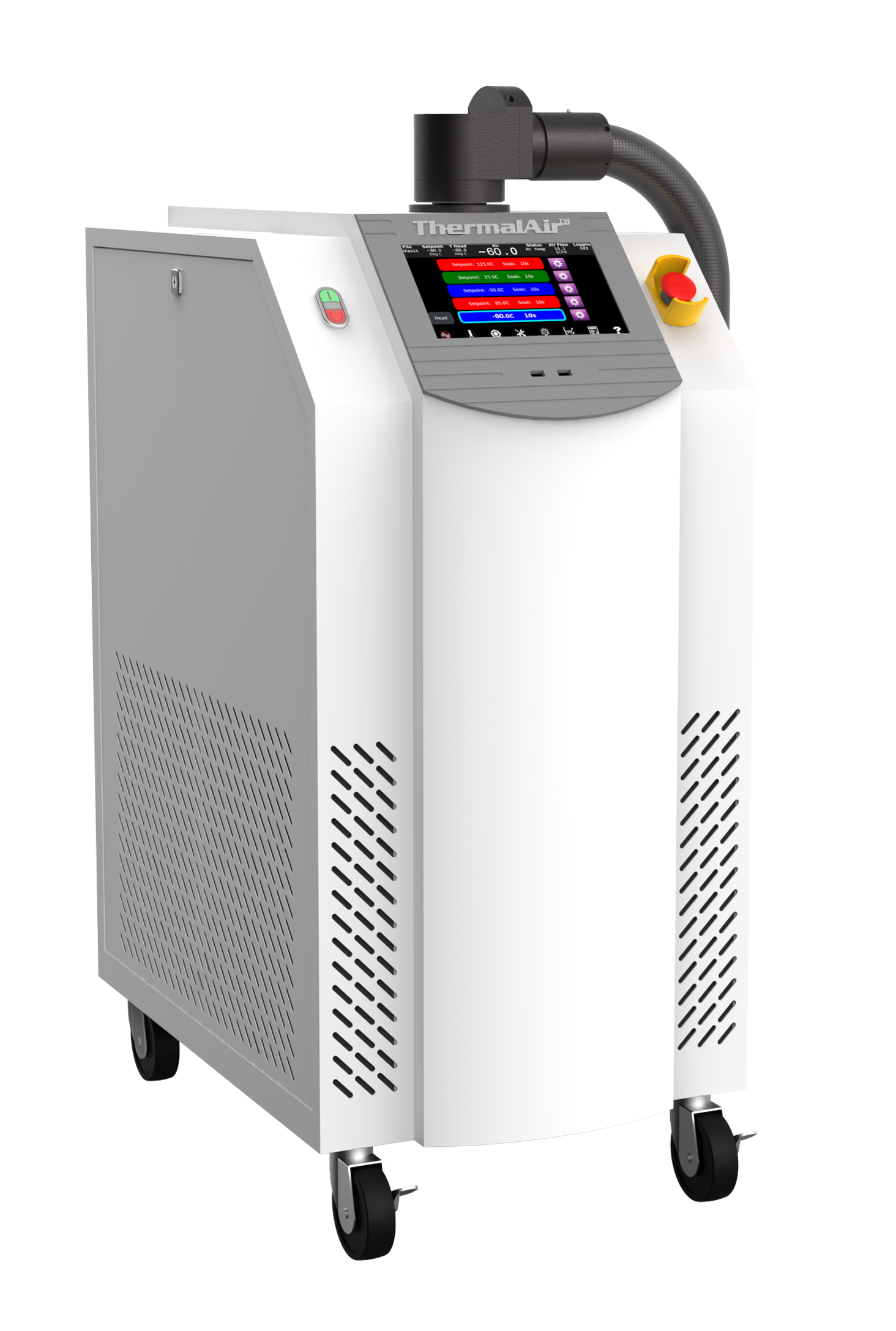

TA-3000B with Flex Extender Hose

ThermalAir System

TA 3000B

-65°C to +225°C

TA-3000B ThermalAir stream temperature forcing test system is super compact at 42 inches high and 20 inches wide. It is for hot and cold test temperatures down to -60°C testing with fast temperature transitions and fast ramp rates. The TA-3000B temperature range of -65°C to +225°C is designed for testing all types of components such as Automotive Sensors, Fiber Optic Transceivers, Microwave RF Hybrids, MCM, PCB, or type Electronic Components / Non-Electronic parts, and other test articles.

The ThermalAir TA-3000B brings precise thermal capabilities directly to your test application, exactly localizing to where temperature testing is required.

This compact ThermalAir TA-3000B can be interfaced with any bench top temperature chamber whether users designed or designed by MPI Thermal. These thermal enclosures bring the temperatures closed to your UUT/DUT for quick and easy temperature test and thermal conditioning needs. Users can temperature test their electronic/non-electronic parts and other devices at temperatures from -65°C to +225°C with a temperature accuracy and uniformity unmatched by large environmental test chambers.

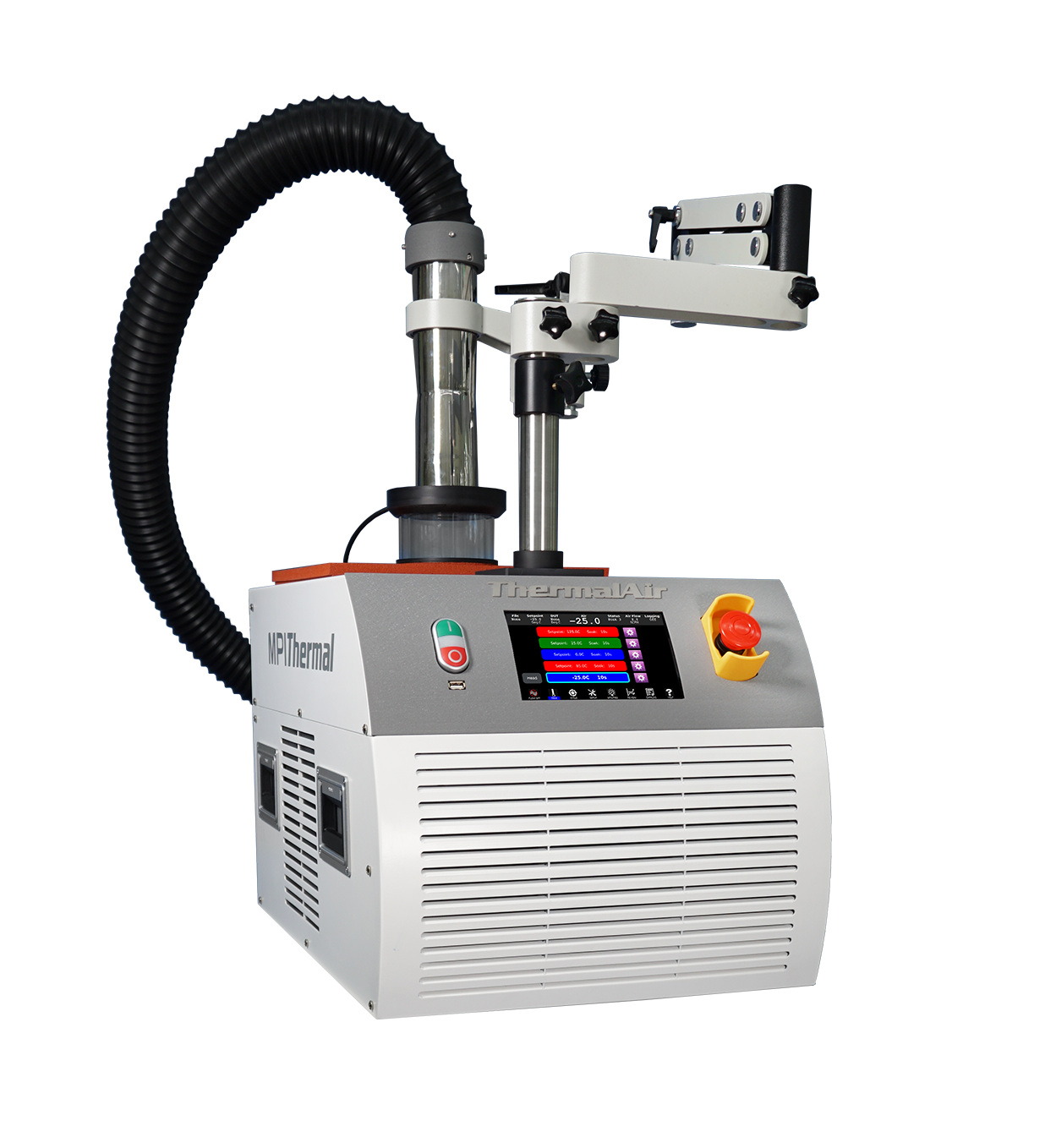

TA-1000A ThermalAir System

BenchTop Thermal Stream

Temperature Inducing System | Temperature Testing Equipment | Temperature Testing Solutions | Temperature Testing Systems

-25°C to +200°C

The Desktop TA-1000 ThermalAir System is the smallest in the product lineup. Temperature Testing of all components such as Sensors, Fiber Optic Transceivers & Components, Microwave Hybrids, MCM, PCB, or Electronic Devices/Non-Electronic parts.

The ThermalAir TA-1000 high-capacity thermal air stream system is used for temperature testing, fast thermal cycling, and device temperature characterization of components, hybrids, modules, PCBs, and other electronic and non-electronic assemblies at precise temperatures from -25°C to +200°C.

ThermalAir TA-1000 with its desktop size can be placed on top or beneath the workstation test bench in the engineering lab or lined up on the production test floor. This ThermalAir stream is the smallest footprint in the ThermalAir temperature system series. The TA-1000 Temperature Control thermal air stream system is ideal for your temperature test and thermal conditioning requirements.

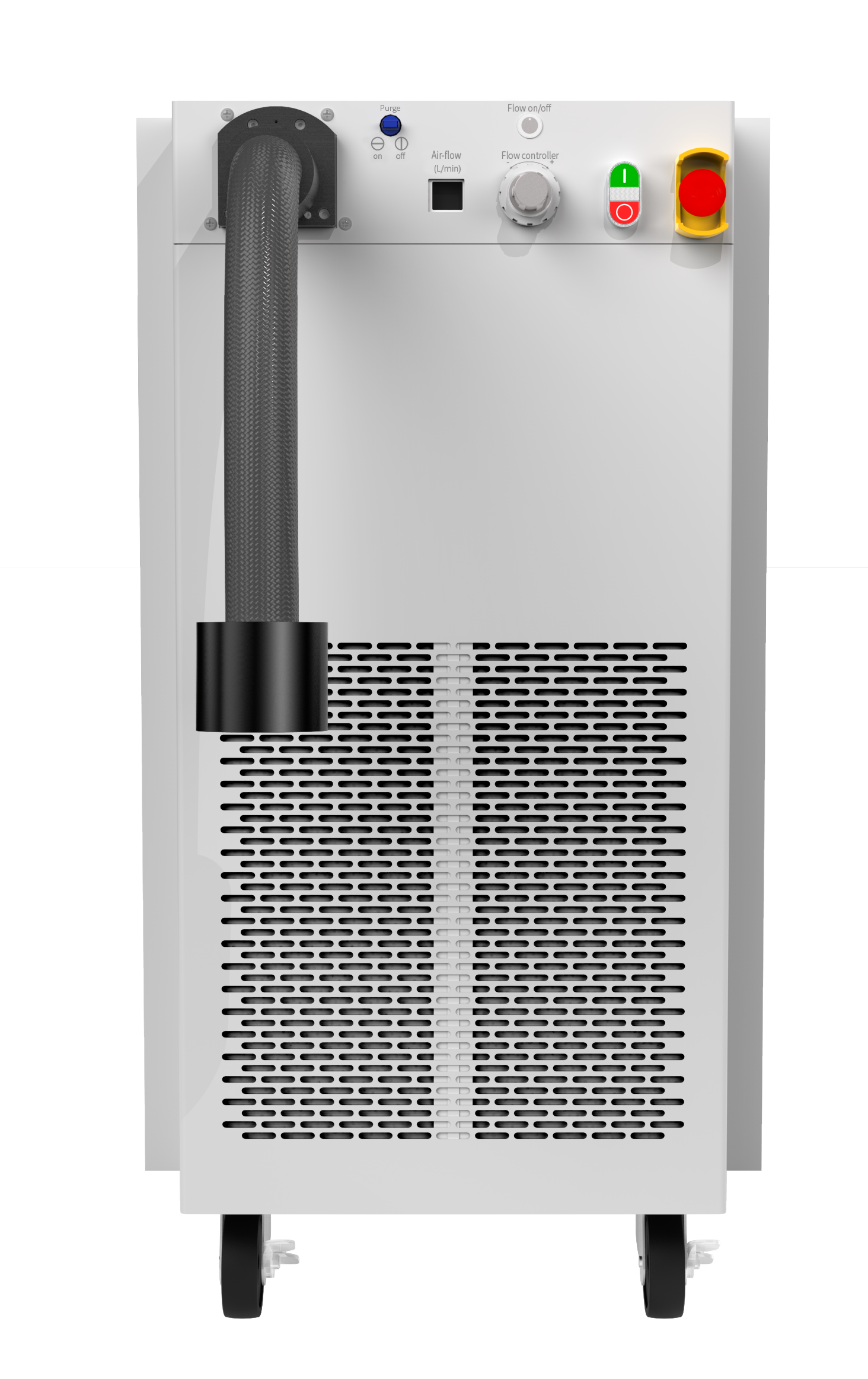

TC-100 Ultra Cold Air Chiller

Cold Temperature Inducing System

TC 100 Chiller

Continuous -80°C
Clean Dry Air @ 24 SCFM

The MPI ThermalAir TC-100 high-capacity thermal air process air chiller system is an alternative to LN2 and CO2. It is used for temperature testing and localized temperature-inducing continuous -80°C Clean Dry Air.

Replace LN2 and CO2 in many temperature test applications.

The unique architecture of the ThermalAir TC-100 Chiller creates unprecedented performance at the ultimate cold -80°C while saving up to 50% on electricity/energy/power!



Energy Efficient Ultra-stable Mechanical Refrigeration



  • Built-in Air Drying System
  • Alternative to LN2 or CO2
  • Plug-in Anywhere Worldwide
  • No Electrical Configuration Needed
